DESCRIPTION

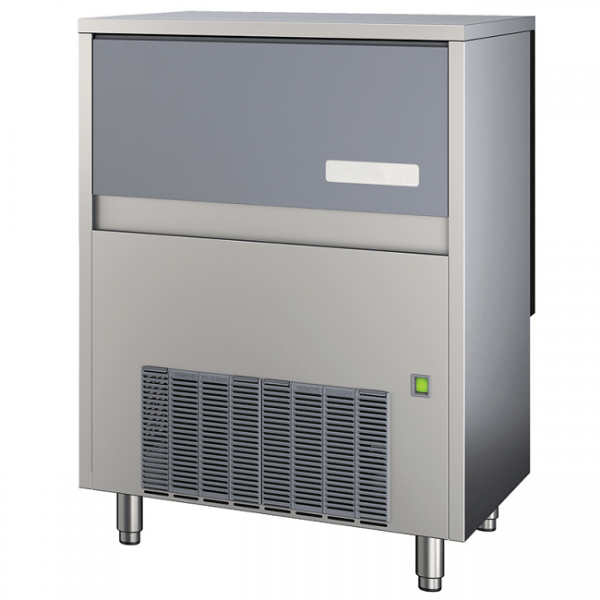

- Granular ice
- Reduced consumption (1lt water/1kg ice, air version)
- Electromechanical operating system
- External structure AISI 304, Scotch Brite finish
- AISI 304 evaporator, AISI 303 screw
- Air or water condensation
- Standard voltage and special voltages
- Insulated door, concealed opening
- ON-OFF switch
- Water basin, anti-dust system
- Automatic water loading
- Simplified cleaning thanks to the rounded surfaces
- Protective external filter, removable, easily cleanable
- Removable side panels
- HCFC-free internal container insulation
- Model in Tropical Class +43°C
- RoHS Directive Compliance
- Adjustable stainless steel feet
Fields of use:
Technical information
| Production in 24 hours |
150kg |
| Tank capacity |
38kg
55kg |
| Condensation |
Air - Water |
| Refrigerant |
R290 |
| Standard voltage |
220-240 V~ 50 Hz |
| Electricity consumption |
700W |
| Fuse |
10 A |
| Water consumption |
Air condensation: 1 l/kg
Water condensation: 7 l/kg |
| Dimensions |
L.74.1 x D.67.8 x H.92.5 cm (Tank 38 kg)
L.74.1 x D.67.8 x H.115 cm (Tank 55 kg) |
| Presser foot |
11-15 cm |
| Net weight gross weight |
85/95 kg (Tank 38 kg)
87/98 kg (Tank 55 kg) |
| Finish |
AISI 304 (18/8) scotch brite stainless steel |
Installation conditions
| Room temperature |
+10 / +43 °C |
| Water temperature |
+3 / +32 °C |
| Voltage |
±10% |
| Inlet water pressure |
1bar (14psi) / 6bar (84psi) |
| Installation |
Internal |
The technical data refers to the following conditions
| Room temperature |
+21°C |
| Water temperature |
+15°C |
| Electricity consumption |
+43°C (standard voltage) |
| Dimensions without feet |
Connections
| 1 water inlet |
120mm - 230mm - 3/4" |
| 2 Water drain |
65mm - 245mm - 24mm |
| 3 Electrical connection |
130mm - 310mm |
THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty.
