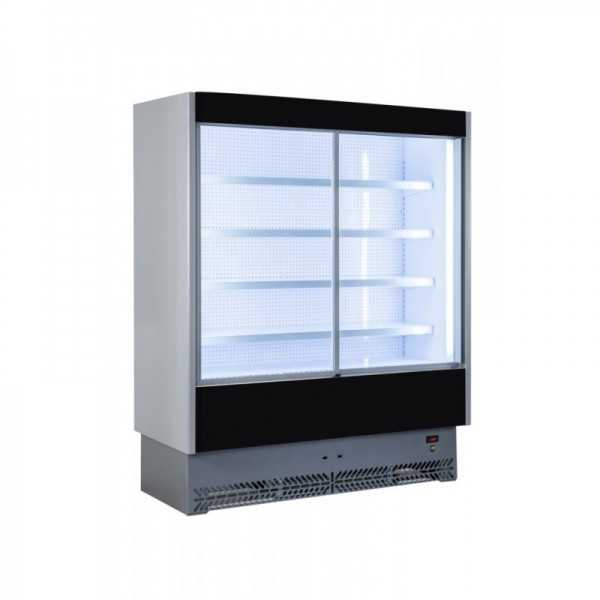

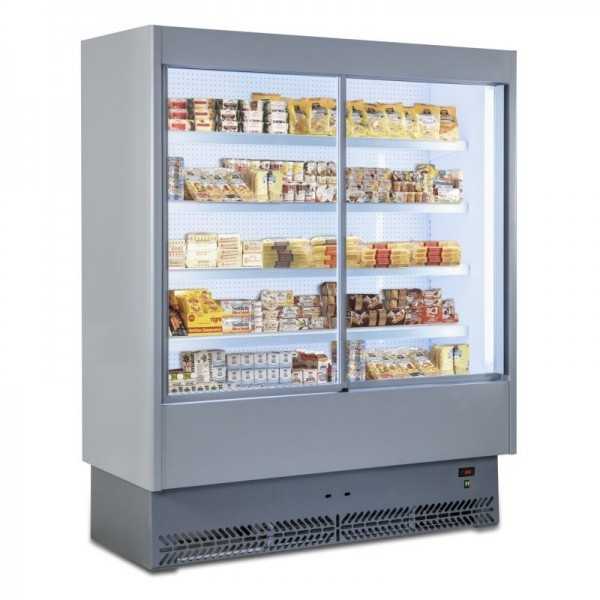

VERTICAL REFRIGERATED PLUG-IN DISPLAY, COMPACT, SUITABLE FOR DISPLAYING AND STORAGE OF FRESH PRE-PACKAGED PRODUCTS
Ecological, reliable, hygienic, completely customizable. Suitable for all sales surfaces
DEPTH 60 cm
Conceived with particular attention aimed at ease of installation and optimization of the cleaning system , guaranteed by easy access to the internal parts. The products on display are always kept at an ideal temperature , thanks to the flow of refrigerated air and a well-sized refrigeration system . It is a product with low energy consumption and low environmental impact : the tub is made without the use of CFCs . All phases, from design to production, have been taken care of in detail: technology and design made in Italy .
CHARACTERISTICS : • Compact but with a large display surface • Suitable for small, medium and large distribution • “Made in Italy” technology, design and production • Easy installation • Optimization of the cleaning system • Low energy consumption • Low environmental impact • Bathtub made without the use of CFCs • Ventilated refrigeration • Possibility of customizations on request
STANDARD EQUIPMENT : • Insulated blind sides (thickness 5 cm each) with integrated neon lights • Electronic control panel • Defrost at stop • Double-glazed sliding doors • 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder, without lighting, without product holding grids • R452A valve in both the version with group and without group

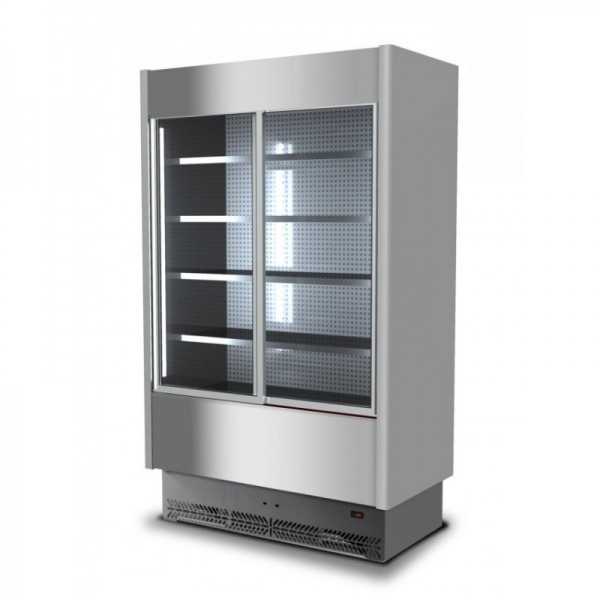

AVAILABLE VERSIONS : • With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil) • With connection to remote compressor: on request • Stainless steel version: on request

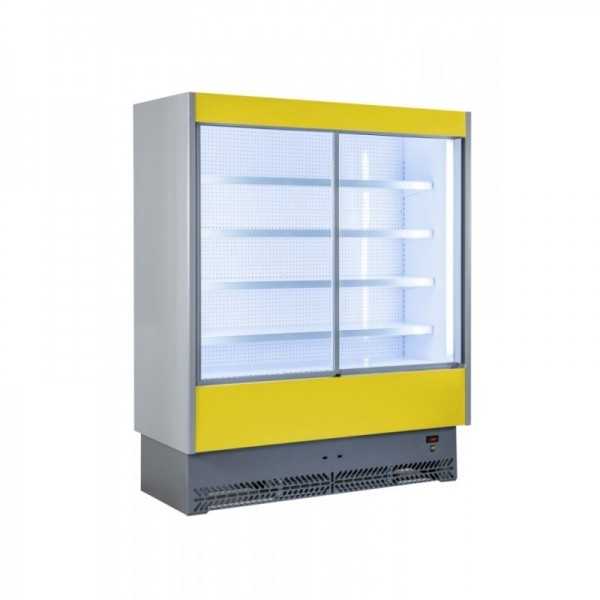

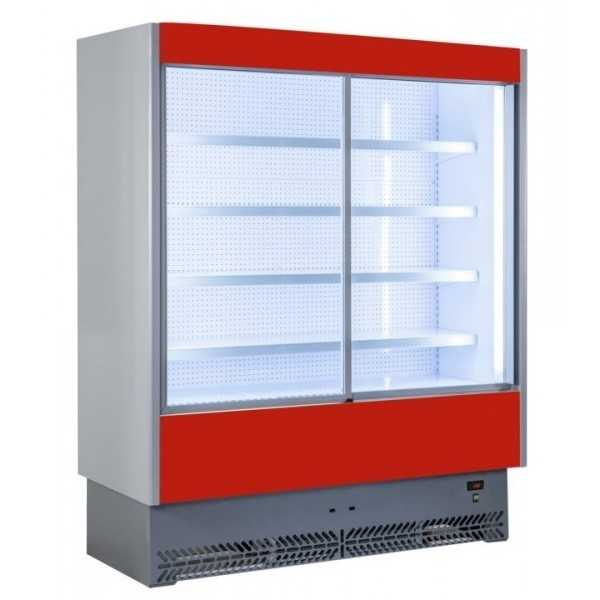

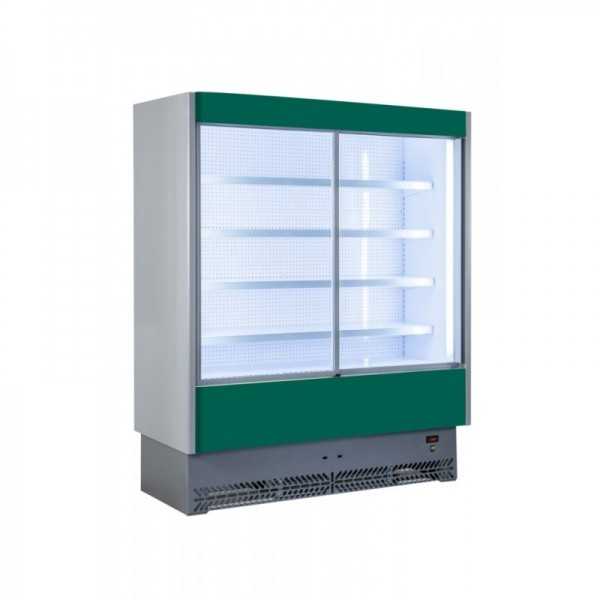

AVAILABLE COLORS : INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE. DATASHEET
VOLCANO 125Dimensions : L.135 x D.60 x H.195.8 cmLower shelf depth : 40 cmShelves Depth : 26 cmExhibition surface area : 1.95 m2Temperature : +3/+5 °CTotal Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)Power Absorbed by Lighting : 2 x 28 WClimate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)Cooling Capacity for Remote Group (Evap. T. -10°C) : 1375 WGross Weight : 170 kg VOLCANO 150Dimensions : L.160 x D.60 x H.195.8 cmLower shelf depth : 40 cmShelves Depth : 26 cmExhibition surface area : 2.35 m2Temperature : +3/+5 °CTotal Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)Power Absorbed by Lighting : 2 x 28 WClimate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)Cooling Capacity for Remote Group (Evap. T. -10°C) : 1650 WGross Weight : 225 kg VOLCANO 187Dimensions : L.197.5 x D.60 x H.195.8 cmLower shelf depth : 40 cmShelves Depth : 26 cmExhibition surface area : 2.94 m2Temperature : +3/+5 °CTotal Power Absorption : 2660 W (Ventilated display with built-in group) - 129 W (Ventilated display with remote group)Power Absorbed by Lighting : 2 x 28 WClimate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)Cooling Capacity for Remote Group (Evap. T. -10°C) : 1980 WGross Weight : 255 kg FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
