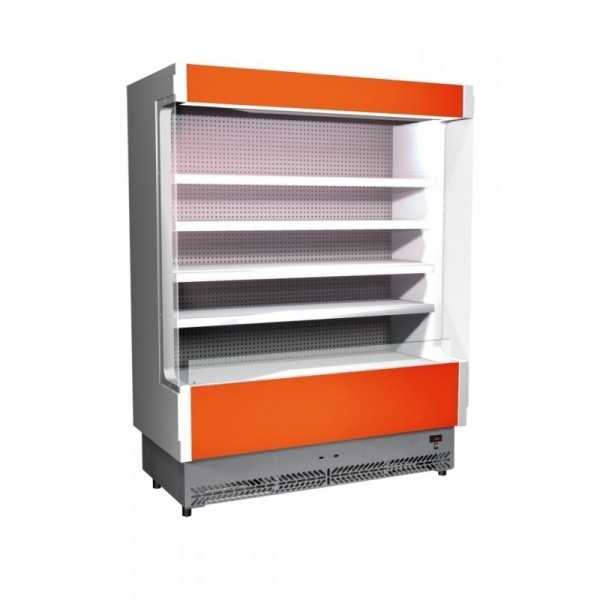

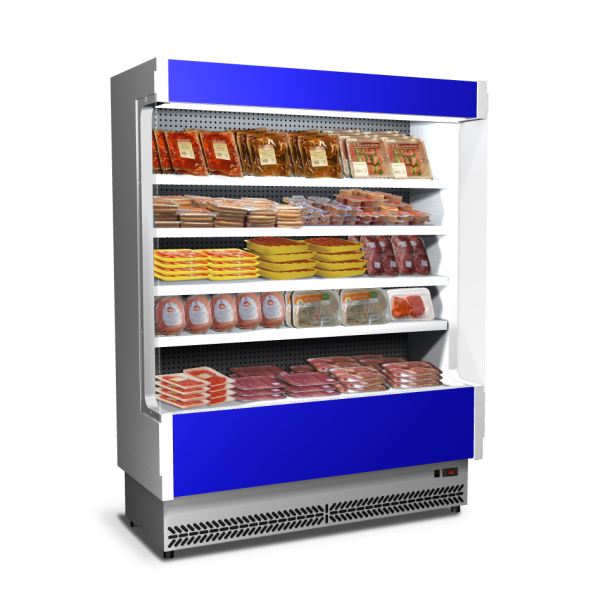

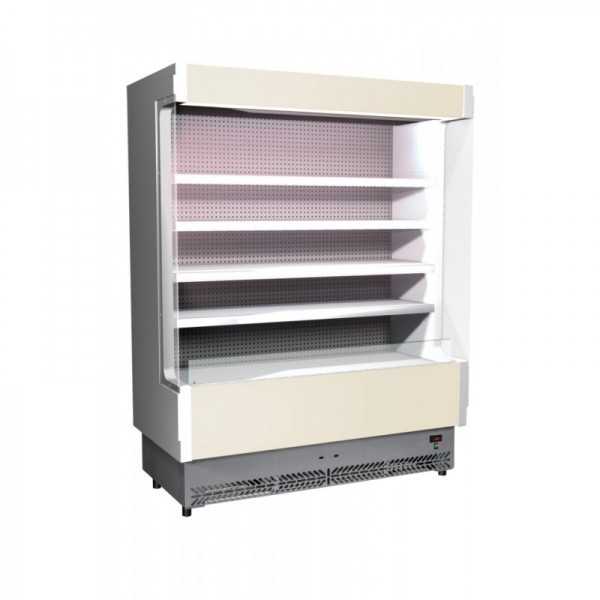

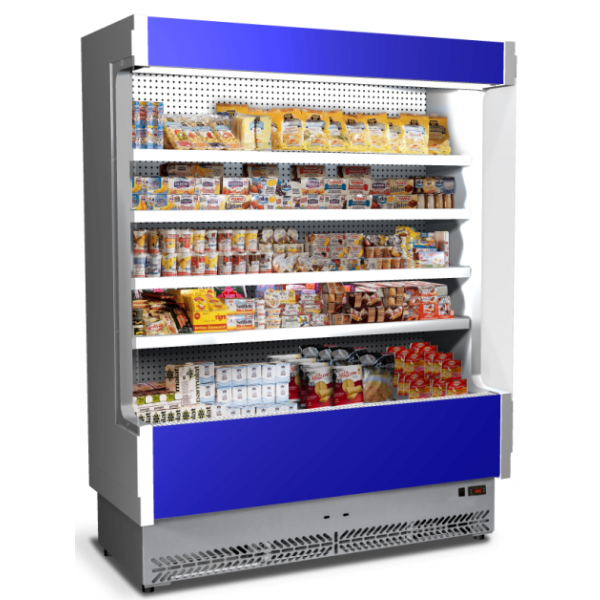

Deli multideck display fridge VULCANO, depth 80 cm
RF_02001_56480
Vulcano model refrigerated wall display with a depth of 80 cm. Designed for displaying pre-packaged fresh foods that need to be stored at appropriate temperatures such as cured meats, dairy...
VERTICAL PLUG-IN REFRIGERATED DISPLAY CASE, COMPACT, SUITABLE FOR DISPLAYING AND STORAGE OF PRE-PACKAGED FRESH PRODUCTS
Ecological, reliable, hygienic, fully customizable. Suitable for all sales surfaces
DEPTH 80 cm
Designed with particular attention to ease of installation and optimization of the cleaning system , guaranteed by easy access to the internal parts. The products on display are always kept at an ideal temperature , thanks to the flow of refrigerated air and a well-sized refrigeration system . It is a product with low energy consumption and low environmental impact : the tank is made without the use of CFCs . All phases, from design to production, have been taken care of in detail: technology and design made in Italy .
CHARACTERISTICS : • Compact but with a large display surface • Suitable for small, medium and large distribution • Technology, design and production “Made in Italy” • Ease of installation • Cleaning system optimization • Low energy consumption • Low environmental impact • Tank made without the use of CFCs • Ventilated refrigeration • Possibility of customizations on request
STANDARD EQUIPMENT : • Thermoformed and insulated shoulders (4 cm thick each) with tempered glass side • Electronic control panel • Off-cycle defrosting • Upper lighting with neon lamp • 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holders, without lighting, without product retaining grids • R452A valve both in the version with group and without group

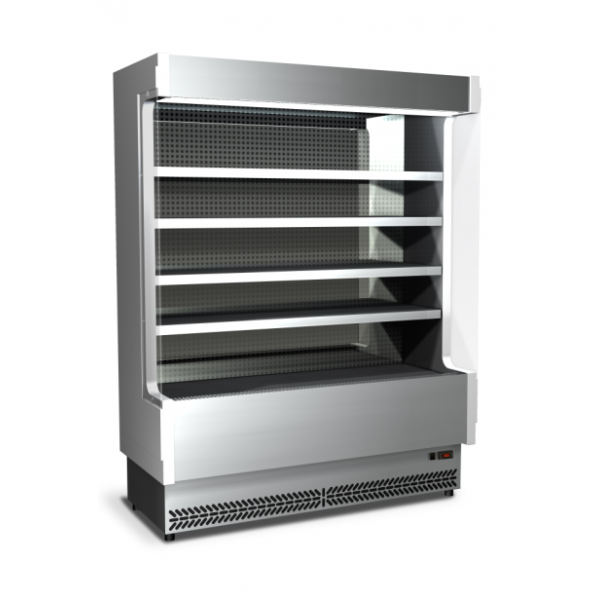

AVAILABLE VERSIONS : • With built-in group (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil) • With remote compressor connection: on request • Stainless Steel Version: on request
AVAILABLE COLORS : INSERT IN THE NOTES , DURING THE ORDER CONFIRMATION, THE COLOR OF THE DISPLAY CASE THAT YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DO NOT CHOOSE A COLOR, WE WILL DELIVER THE FIRST AVAILABLE DISPLAY CASE. DATASHEET
VOLCANO 100Dimensions : L.108 x D.80 x H.204 cmLower shelf depth : 53 cmShelves Depth : 38 cm (x4)Exhibition area : 2.00 m2Temperature : +3/+5 °CTotal Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)Power Consumption by Lighting : 1 x 18 WClimate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)Cooling Power for Remote Group (T.Evap. -10°C) : 1100 WGross Weight : 180 kg VOLCANO 125Dimensions : L.133 x D.80 x H.204 cmLower shelf depth : 53 cmShelves Depth : 38 cm (x4)Exhibition area : 2.6 m2Temperature : +3/+5 °CTotal Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)Power Consumption by Lighting : 1 x 18 WClimate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)Cooling Power for Remote Group (T.Evap. -10°C) : 1375 WGross Weight : 210 kg VOLCANO 140Dimensions : L.148 x D.80 x H.204 cmLower shelf depth : 53 cmShelves Depth : 38 cm (x4)Exhibition area : 2.90 m2Temperature : +3/+5 °CTotal Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)Power Consumption by Lighting : 1 x 18 WClimate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)Cooling Power for Remote Group (T.Evap. -10°C) : 1540 WGross Weight : 225 kg VOLCANO 150Dimensions : L.158 x D.80 x H.204 cmLower shelf depth : 53 cmShelves Depth : 38 cm (x4)Exhibition area : 3.10 m2Temperature : +3/+5 °CTotal Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)Power Consumption by Lighting : 1 x 36 WClimate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)Cooling Power for Remote Group (T.Evap. -10°C) : 1650 WGross Weight : 240 kg VOLCANO 187Dimensions : L.195.5 x D.80 x H.204 cmLower shelf depth : 53 cmShelves Depth : 38 cm (x4)Exhibition area : 3.80 m2Temperature : +3/+5 °CTotal Absorbed Power : 2660 W (Fanned display with built-in group) - 130 W (Fanned display with remote group)Power Consumption by Lighting : 1 x 58 WClimate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)Cooling Power for Remote Group (T.Evap. -10°C) : 1980 WGross Weight : 280 kg VOLCANO 200Dimensions : L.208 x D.80 x H.204 cmLower shelf depth : 53 cmShelves Depth : 38 cm (x4)Exhibition area : 4.10 m2Temperature : +3/+5 °CTotal Absorbed Power : 2660 W (Fanned display with built-in group) - 130 W (Fanned display with remote group)Power Consumption by Lighting : 2 x 36 WClimate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)Cooling Power for Remote Group (T.Evap. -10°C) : 2200 WGross Weight : 300 kg VOLCANO 250Dimensions : L.258 x D.80 x H.204 cmLower shelf depth : 53 cmShelves Depth : 38 cm (x4)Exhibition area : 5.10 m2Temperature : +3/+5 °CTotal Absorbed Power : 2684 W (Fanned display with built-in group) - 155 W (Fanned display with remote group)Power Consumption by Lighting : 2 x 36 WClimate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)Cooling Power for Remote Group (T.Evap. -10°C) : 2750 WGross Weight : 400 kg VOLCANO 300Dimensions : L.308 x D.80 x H.204 cmLower shelf depth : 53 cmShelves Depth : 38 cm (x4)Exhibition area : 6.20 m2Temperature : +3/+5 °CTotal Absorbed Power : 3044 W (Fanned display with built-in group) - 270 W (Fanned display with remote group)Power Consumption by Lighting : 2 x 36 WClimate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)Cooling Power for Remote Group (T.Evap. -10°C) : 3300 WGross Weight : 500 kg FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE RECOMMEND ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
Prompt delivery
Made in Italy
