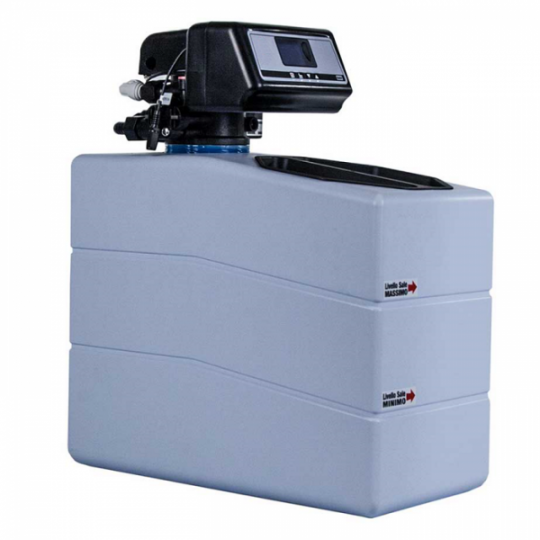

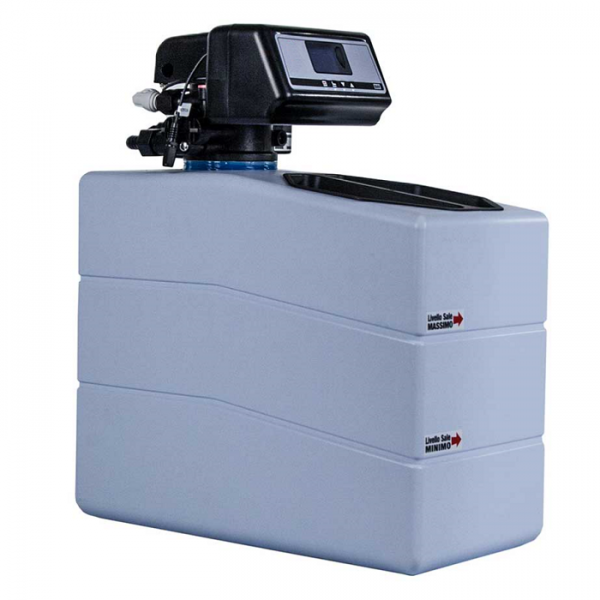

The water treated by this softener will have a reduction in the salts responsible for its hardness. By adjusting the hardness mixer present in the valve body, it is possible to obtain the desired hardness value.
The volumetrically controlled electronic valve carries out the regeneration of the resins only when the liter counter detects the set value of treatable water; in any case, the valve software will carry out a "forced" regeneration every 4 days.
The water softeners are delivered already programmed and ready for installation and start-up. They don't require any devices
anti-overflow or "overflow" as they are equipped as standard with a safety float valve .

For correct operation we recommend the use of salt softening tablets.

DATASHEET

BAV 5 - Cyclic capacity 450 L

Dimensions : L.20 x D.40 x H.48 cm
Operating pressure : min 1.8 - max 5 bar
Water temperature : min 5° C - max 35° C
Cyclic capacity (hardness 40° f) : 450 lt
Resin content : 3.5 lt
Average salt consumption for regeneration : 700 gr
Power absorbed : 10 W
Power supply : 220 V - 50 Hz
Empty weight : 8 kg

BAV 8 - Cyclic capacity 650 L

Dimensions : L.24 x D.43.5 x H.48 cm
Operating pressure : min 1.8 - max 5 bar
Water temperature : min 5° C - max 35° C
Cyclic capacity (hardness 40° f) : 650 lt
Resin content : 5 lt
Average salt consumption for regeneration : 1000 gr
Power absorbed : 10 W
Power supply : 220 V - 50 Hz
Empty weight : 9 kg

BAV 10 - Cyclic capacity 450 L

Dimensions : L.28 x D.48 x H.49 cm
Operating pressure : min 1.8 - max 5 bar
Water temperature : min 5° C - max 35° C
Cyclic capacity (hardness 40° f) : 850 lt
Resin content : 7 lt
Average salt consumption for regeneration : 1400 gr
Power absorbed : 10 W
Power supply : 220 V - 50 Hz
Empty weight : 12 kg

BAV 12 - Cyclic capacity 1200 L

Dimensions : L.24.5 x D.44 x H.58 cm
Operating pressure : min 1.8 - max 5 bar
Water temperature : min 5° C - max 35° C
Cyclic capacity (hardness 40° f) : 1200 lt
Resin content : 9 lt
Average salt consumption for regeneration : 1800 gr
Power absorbed : 10 W
Power supply : 220 V - 50 Hz
Empty weight : 14 kg
