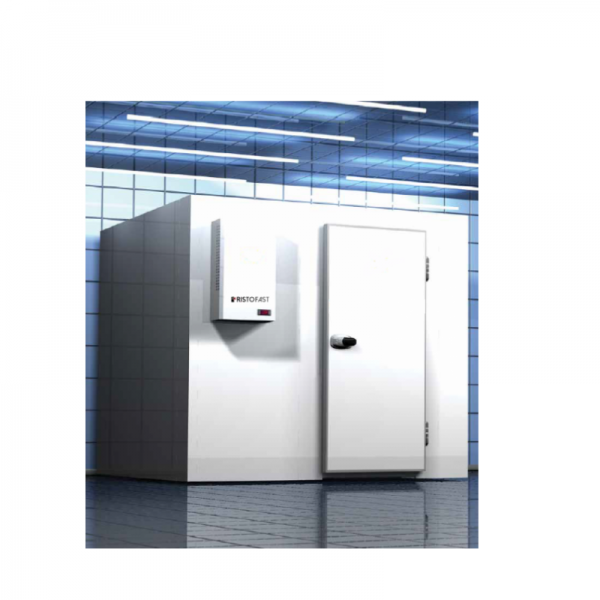

Walk in fridge with wall mounted motor, width 154 cm
€2,899.00
Tax included
Professional positive cold room with engine without floor. Ideal for fruit, butchery and any preservation needs. Respects the most restrictive hygiene and health standards. Composed of modular panels 7 cm thick. The internal and external cladding of the walls is made of non-toxic pre-painted white sheet metal. The monobloc construction allows for a ready-to-use system that is easy to install and use. Equipped with an overhead monobloc engine. Can be ordered in the following depths 154, 214, 254 and 314 cm and in the following heights 207 and 247 cm.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Accessori da avere assolutamente
Accessories
Can be ordered in lengths between 60 and 200 cm |
SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.160 cm €299.00 |
|
Can be ordered in lengths between 60 and 200 cm |
SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.180 cm €309.00 |
|
Can be ordered in lengths between 60 and 200 cm |
SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.200 cm €319.00 |
|
|
Kit illuminazione per celle frigorifere €99.99 |
Designed to satisfy any type of modern conservation need. The high quality of our cold rooms and our innovative production process allow us to comply with the most restrictive health and hygiene standards with high flexibility and speed of assembly.
Made up of 7cm thick modular panels. The insulation is achieved with the injection of rigid polyurethane foam with a density of 40 - 42 kg/m3 (95% closed cells). The panels are locked using eccentric hooks. The ceiling panels are positioned hidden inside the vertical ones in order to ensure a harmonious aesthetic appearance. The internal and external cladding of the walls is made of non-toxic pre-painted white sheet metal. On request, wall coverings in white pre-painted sheet metal or Aisi 304 stainless steel are available.
The monobloc construction allows for a ready-to-use system that is easy to install and use.
Technical features :
• Zippers easily adjustable in 3 directions
• Standard handle with key lock and internal safety release
• Quick and easy assembly via eccentric hook fixing
TECHNICAL DATA SHEETS for cells H.207 cm
Dimensions: L.154 x D.154 x H.207 cm
Volume : 3.92 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.154 x D.214 x H.207 cm
Volume : 5.6 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.154 x D.254 x H.207 cm
Volume : 6.72 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.4 kW
Dimensions : L.154 x D.314 x H.207 cm
Volume : 8.4 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.74 kW - 1 Hp
Consumption : 1.6 kW
TECHNICAL DATA SHEETS for cells H.247 cm
Dimensions: L.154 x D.154 x H.247 cm
Volume : 4.70 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.154 x D.214 x H.247 cm
Volume : 6.72 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.4 kW
Dimensions: L.154 x D.254 x H.247 cm
Volume : 8.06 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.74 kW - 1 Hp
Consumption : 1.6 kW
Dimensions : L.154 x D.314 x H.247 cm
Volume : 10.08 m3
Power supply (motor) : 230 V / 1 / 50 Hz - 400 V / 3 / 50 Hz
Power (engine) : 0.75 kW - 1 Hp
Consumption : 1.6 kW (single-phase) - 1.8 kW (three-phase)
RF_02044_55822
Data sheet
- Made in Italy
- Yes
- Temperature
- -2° / +10° C
- Length
- 150 a 199 cm
- Width
- and 150 and 199 cm
and 200 and 249 cm
and 250 to 299 cm
a partire da 300 cm - Flooring
- without floor
- Dimensions (LxDxH cm)
- 154 x 154 x 207
154 x 154 x 247
154 x 214 x 207
154 x 214 x 247
154 x 254 x 207
154 x 254 x 247
154 x 314 x 207
154 x 314 x 247 - Temperature (°C)
- 0 / +5
- Power (V/P/Hz)
- 400 / 3 / 50
- Insulation thickness (cm)
- 7
- Volume (m²)
- 3,92
4,7
5,6
6,72
8,06
8,4
10,08
