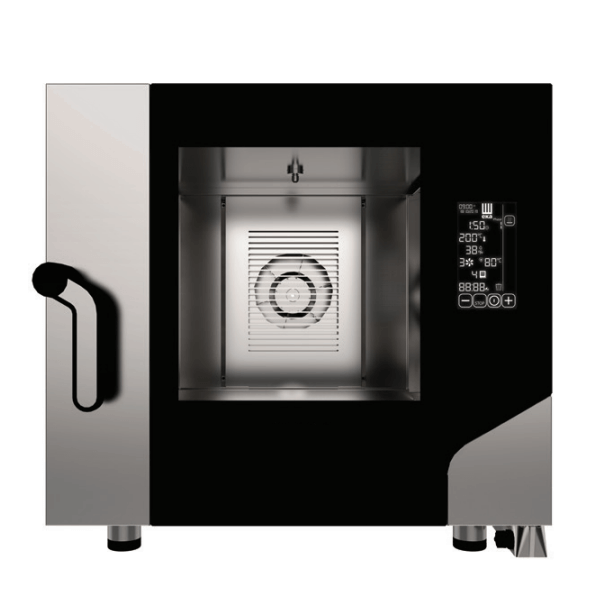

Electric combined convection steam oven for 5 GN 1/1 trays with digital panel.

TECHNICAL FEATURES

- Italian product;

- Airflowlogic system: allows uniform cooking in all areas of the oven;

- Humilogic system: water is inserted directly into the rear part of the fan to achieve high humidity levels in the cooking chamber and reduce consumption;

- Easy to use digital panel;

- 10 programmable cooking phases;

- Direct steam with automatic regulation via 10-step selector;

- 100 programmable recipes;

- Preheating;

- Maintenance;

- Rapid cooling;

- Cooking chamber in AISI 304 stainless steel;

- Inspectable door glass;

- USB socket;

- Delayed start programmable up to 24 hours;

- Possibility to control the hood, leavener and holding cabinet from the oven;

- Adjustable feet.

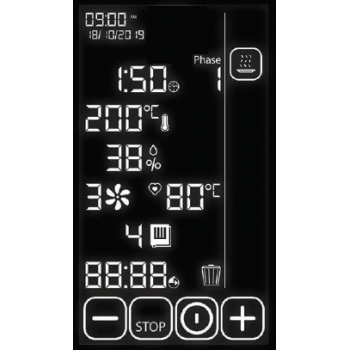

PANEL

DATA SHEET

Dimensions: L.73 x D.85 x H.70 cm

Weight: 78.4 kg

Guide pitch: 6.8 cm

Power: 7.8 kW

No. of motors: 1 bidirectional

Power supply: 380/400 V | 3 N | 50 Hz

Capacity: 5 GN 1/1 trays/grills

Cooking: semi-static + fan assisted

Steam: direct

Cooking chamber: AISI 304 steel

Temperature: 30 - 270° C

Temperature control: digital probe

Preset temperature: 180° C

Preheat: available

Door: right side opening - ventilated - inspectable glass

Water protection: IPX4

Stackable: yes

STANDARD EQUIPMENT

Side supports 1 right + 1 left

Three-phase + neutral cable: 160 cm

USB socket

Condensation collection tray with drain on door

Hinge with door lock for openings adjusted to 60°, 90°, 120°, 180°
