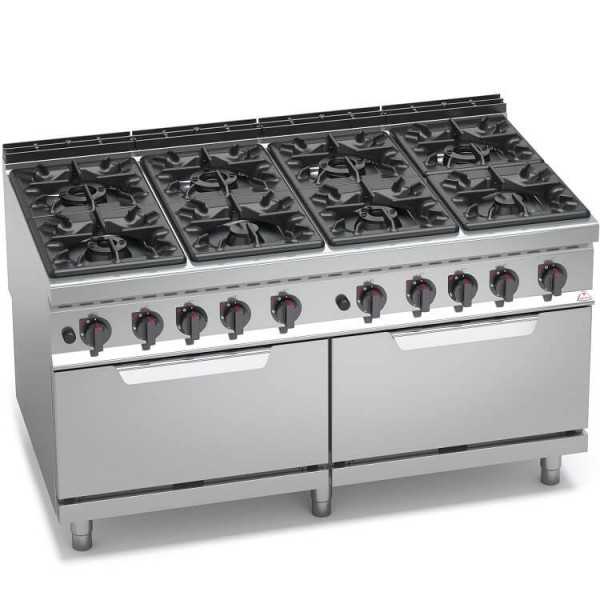

Worktop and front and side panels in 304 stainless steel. AISI 430 interior. 80 mm cast iron burners, with adjustment up to 3.5 kW, 108 mm, with adjustment up to 7 kW and 130 mm, with adjustment up to 12 kW. Thermocouple safety valve and protected pilot flame. Gas oven with self-stabilizing flame burner positioned under the enamelled sole and adjustable thermostat from 160° to 280°C. Oven chamber in AISI 430, with 4-level supports and pressed and ribbed stainless steel inner door. Internal fireplace in AISI 304 stainless steel and burner support in AISI 430 stainless steel. Handles with high resistance double mold in AISI 304 stainless steel, thickness 20/10.
Trays pressed in AISI 304 stainless steel.

DATA SHEET

Dimensions : L.160 x D.90 x H.90 cm

Total Power : 84.6 kW - 72742 kcal/h - 288667 btu/h

Stove power : 3.5 kW (x2) + 7 kW (x2) (Front) - 12 kW (x4) (Rear)

Oven power : 7.8 kW (x2) - 6708 kcal/h (x2) - 26614 btu/h (x2)

Oven capacity : GN 2/1 - 65 x 53 cm x 4 pos.

Types of Gas : 6.67 G30/G31 kg/h - 8.95 G20 m3/h - 10.42 G25 m3/h

Net Weight : 260 kg
