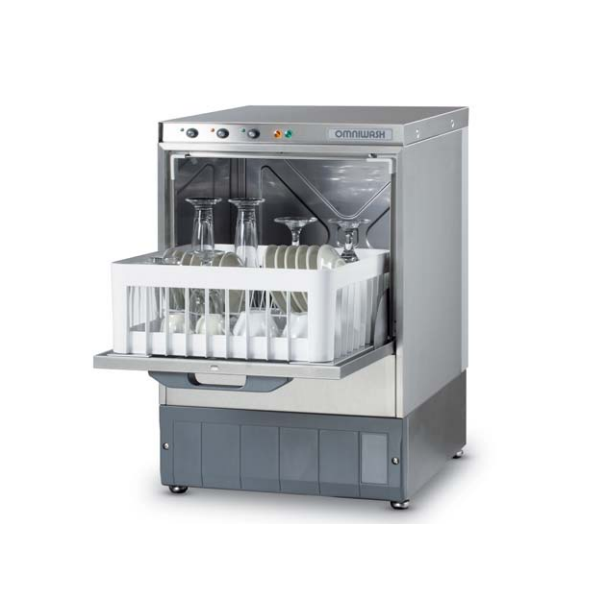

Dishwashers made of AISI 304 18/10 stainless steel, in strict compliance with the environment and current regulations, to be long-lasting.

DATA SHEET

Dimensions : L.47.5 x D.52.7 x H.71.9 cm

Basket dimensions : 40 x 40 cm

Maximum Useful Height : 29 cm

Electrical power supply : 1 x 230 V / 50 Hz

Washing pump flow rate : 240 l/min

Washing Pump Power : 0.45 kW - 0.6 Hp

Boiler resistance : 2700 W

Tank resistance : 1800 W

Maximum Absorbed Power : 3150 W

Tank capacity : 14 litres

Boiler capacity : 5.5 litres

Wash / Rinse Temperature : 55 °C / 85 °C

Cycle Duration : 120 s

Cycles Hour : 30

Supply pressure : 2 - 4 bar

Inlet / Exhaust Pipe Diameter : 3/4'' / 2.5 cm

Supply water : Max 50 °C

Noise Level : <60 dBA

Net Weight : 36 kg

Standard equipment : 2 baskets - 1 teaspoon holder - 1 insert for 12 saucers

THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty.

Before purchasing.

Before making the purchase, check the positioning of the drain in your room, whether the drain is positioned on the floor and on the wall (up to 5 cm from the floor) or on the wall (more than 5 cm from the floor) .

1st case : If the drain is positioned on the ground and on the wall (up to 5 cm from the floor), you can purchase any type of machine since all the machines produced are designed for gravity-driven water drainage.

2nd case : If the drain is positioned on the wall (more than 5 cm from the floor), you must purchase the drain pump in addition to the standard machine. You can do this at the same time as purchasing the machine (in this case it will be installed directly and at no cost), or you can also do it at a later time (after purchasing the main machine). This is possible since all the machines are designed for the installation of the loading pump.

You can find the drain pump kit - 32 W among the Accessories in the product sheet or by searching for the corresponding code in the search bar (RF_03347 ).
