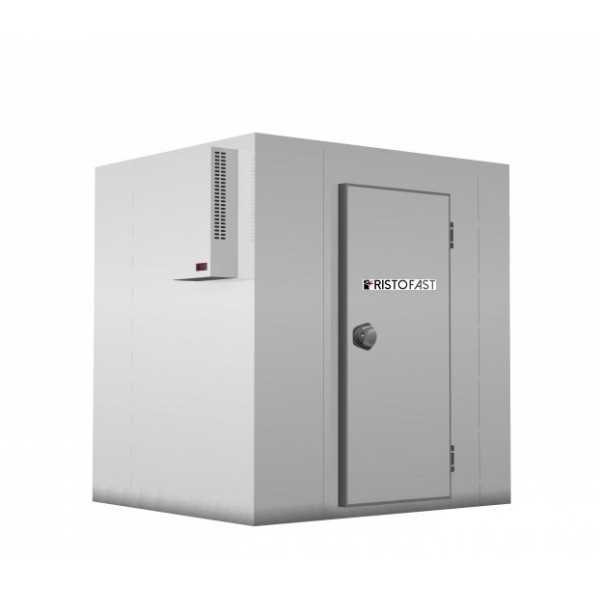

Designed to meet any type of need of modern conservation. The high quality of our cold rooms and our innovative production process allow us to comply with the most restrictive hygiene and health standards with a high flexibility and speed of assembly.
Composed of 7 cm thick modular panels. The insulation is made with the injection of rigid polyurethane foam with a density of 40 - 42 kg/m3 (95% closed cells). The panels are locked using eccentric hooks. The floor and ceiling panels are positioned concealed inside the vertical ones to ensure a harmonious aesthetic appearance. The internal and external wall coverings are made of non-toxic pre-painted white sheet metal, while the floor is made of non-slip Aisi 304 stainless steel with adequate internal support for better load distribution. Wall coverings in white pre-painted sheet metal or Aisi 304 stainless steel and reinforced floors for greater loads are available on request.

Technical features :
• Hinges easily adjustable on-site in 3 directions
• Standard handle with key lock and internal safety release
• Non-slip stainless steel floor with integrated internal support
• Floor + panel: quick and easy assembly via eccentric hook fastening

TECHNICAL DATA SHEETS for cells H.214 cm

Dimensions: L.154 x D.154 x H.214 cm

Volume : 3.92 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW

Dimensions: L.154 x D.214 x H.214 cm

Volume : 5.6 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW

Dimensions: L.154 x D.254 x H.214 cm

Volume : 6.72 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.4 kW

Dimensions : L.154 x D.314 x H.214 cm

Volume : 8.4 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.74 kW - 1 Hp
Consumption : 1.6 kW

TECHNICAL DATA SHEETS for cells H.254 cm

Dimensions: L.154 x D.154 x H.254 cm

Volume : 4.70 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW

Dimensions: L.154 x D.214 x H.254 cm

Volume : 6.72 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.4 kW

Dimensions: L.154 x D.254 x H.254 cm

Volume : 8.06 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.74 kW - 1 Hp
Consumption : 1.6 kW

Dimensions : L.154 x D.314 x H.254 cm

Volume : 10.08 m3
Power supply (motor) : 230 V / 1 / 50 Hz - 400 V / 3 / 50 Hz
Power (engine) : 0.75 kW - 1 Hp
Consumption : 1.6 kW (single phase) - 1.8 kW (three phase)
