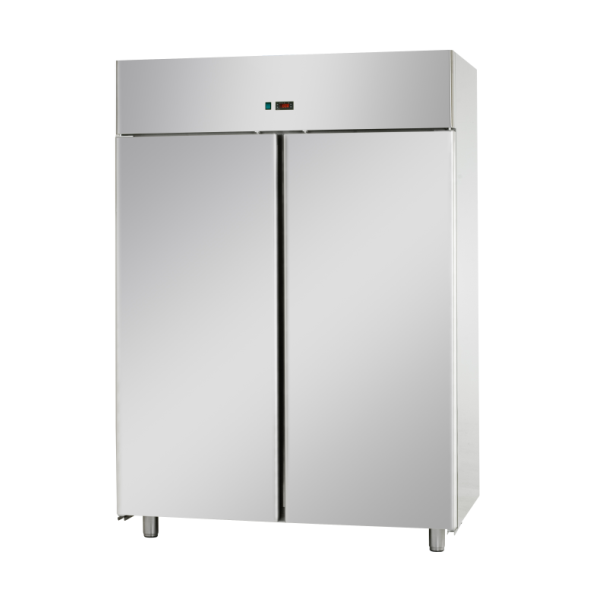

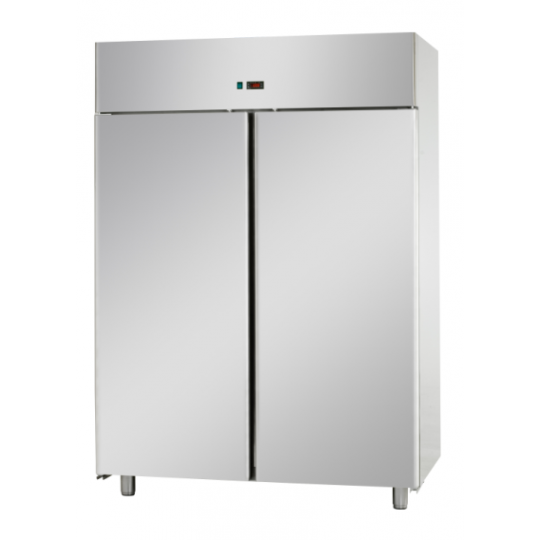

COMBINED REFRIGERATED CABINET GN 2/1 IN DOUBLE TEMPERATURE STAINLESS STEEL (TN+BT) WITH 2 DOORS
Interior and exterior in stainless steel, except external bottom, ceiling and back in galvanized steel. Rounded external corners. Insulation in CFC-free polyurethane, injected at high pressure. Insulation thickness: 60 mm. Self-closing doors with magnetic seal. Front electronic control panel with NTC probe. Ventilated refrigeration. Removable and tropicalized monobloc refrigeration unit as standard (ambient temperature + 43°C and relative humidity of 65°C) operating with R452A gas. Cabinets also available in the version without refrigeration unit. Fully automatic defrosting and condensation water evaporation. 700 L models with reversible door. Height-adjustable stainless steel feet. Combined cabinets available exclusively with evaporator inside the refrigerated chamber. BT cabinets : electronic control instrument with 2 NTC probes, evaporator resistance, exhaust resistance, door edge resistance, ventilation stop device when the door opens, thermostatic valve.

DIMENSIONS: 1420 x 800 x 2030/2100 mm

PACKAGING DIMENSIONS: 1460 x 840 x 2200 mm

NET WEIGHT: 189 Kg

CAPACITY: 1380 L

TEMPERATURE: TN 0/+ 10° C - BT: -18/-22°C

REFRIGERANT GAS: R452A

TESTING: + 43/65 % °C/RH

ABSORPTION: 385+650 W

POWER SUPPLY: 230 V/1/50 Hz

Equipment for internal setup: 6 Rilsan GN 2/1 plastic-coated grids and 12 stainless steel guides, fan stop (BT)
