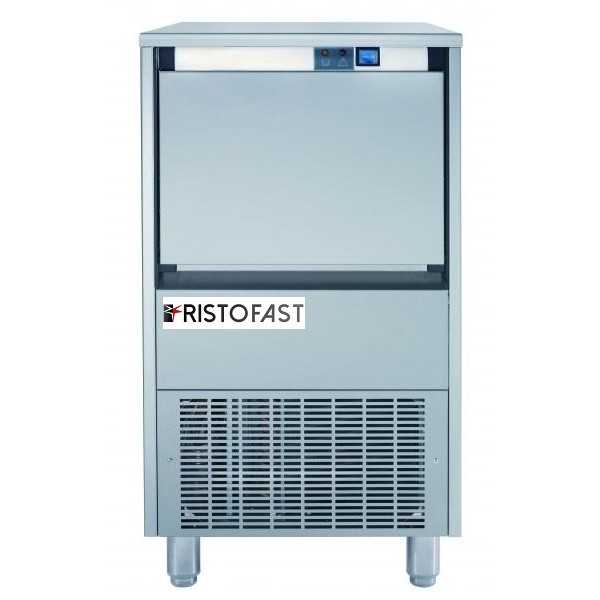

Granular ice machine CD series
€1,939.00
Tax included
Manufacturer, maker for daily ice production starting from 50 kg up to 90 kg. Ideal for all catering businesses: bars, pizzerias, restaurants. This range of ice makers is available with air or water cooling variants.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Accessori da avere assolutamente
Accessories
|
€475.00 | |
|
FILTRO PER PRODUTTORI DI GHIACCIO €69.00 |
|
|
€999.00 |
This range of ice makers is available with air or liquid cooling variants, choose the version best suited to your needs and communicate this at the time of purchase.
NB the daily ice production may vary depending on the version chosen
DATASHEET

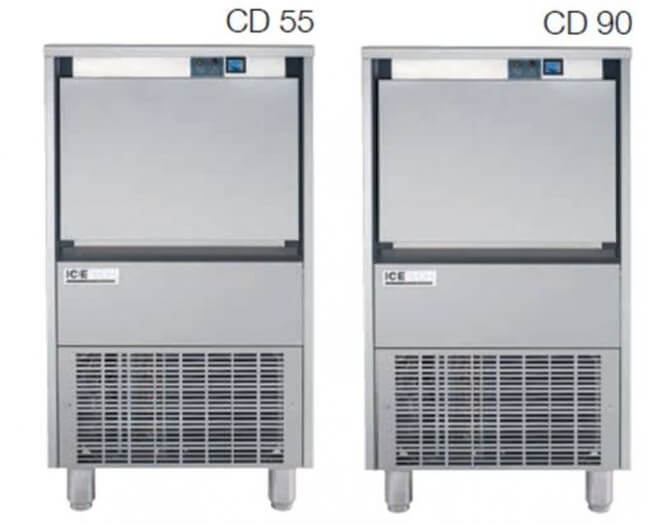

Ice maker up to 58 kg / 24 h
Dimensions : L.46.5 x D.59.5 x H.79 cm
Condensing system : Air - Water
Production : 55 kg/ 24 h (Air) - 58 kg/ 24 h (Water)
Tank : 20 kg
Maximum input power : 505 W
Refrigerant R404 : 280 Gr (Air) - 220 Gr (Water)
Ice maker up to 94 kg / 24 h
Dimensions : L.46.5 x D.59.5 x H.79 cm
Condensing system : Air - Water
Production : 94 kg/ 24 h (Air) - 88 kg/ 24 h (Water)
Tank : 20 kg
Maximum input power : 533 W
Refrigerant R404 : 280 Gr (Air) - 220 Gr (Water)
Technical Characteristics / Operation Limits
| Ice | Pearl “chewing” ice, soft and long-lasting. |
| Car body | AISI 304 stainless steel |
| Vertical Evaporator Cylindrical |
The I CE TECH DIAMOND machine is equipped with a vertical evaporator and a high-performance auger in the top. Pearl Diamond ice is made by compressing dry granular ice and converting it into more delicate components of soft ice “to chew”. |
| Electromechanical controls | The control of the machine is carried out by timer and thermostat. Simple, easy to understand and maintain. High reliability and low cost of spare parts. |
| Switch | External On/Off switch |
| Tropicalized Machines | T-Class |
| Range | Air temperature: 5 – 40ºC Water temperature: 5 – 35ºC Pressure: 0.7 – 6 bar |
| Ice Production Capacity | Kg/24h at Room temperature 15ºC, Water temperature 10ºC |
| Certification | ISO 9001, CE |
| Others | R404 refrigerant 3/4" water inlet connection Exhaust gas connection 20mm. Single-phase power 220V–50Hz. / Optional: 220V-60Hz. |
THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty
