DATA SHEET

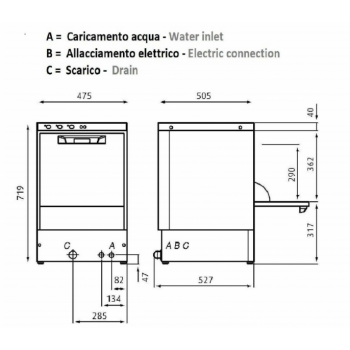

Dimensions : L.47.5 x D.52.7 x H.71.9 cm

Power supply : 1 x 230 V / 50 Hz

Washing Pump Power : 0.30 kW - 0.4 Hp

Boiler resistance : 2700 W

Tank Resistance : 1800 W

Maximum Power Absorbed : 3000 W

Tank capacity : 14 litres

Boiler capacity : 5.5 lt

Wash / Rinse Temperature : 55 °C / 85 °C

Cycle duration : 120 s

Supply pressure : 2 - 4 bar

Inlet / Outlet Pipe Diameter : 3 / 4'' - 2.5 cm

Net Weight : 37 kg

Standard equipment : Glass basket, cutlery insert, rinse aid dispenser.

THE MANUFACTURER recommends using a water filter or softener. Reducing or eliminating calcium from your water can greatly improve the life and efficiency of your equipment by preventing the build-up of calcium in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Damage caused by limescale is not covered by the warranty.

Before purchasing.

Before making a purchase, check the positioning of the drain in your room, whether the drain is positioned on the floor and on the wall (up to 5 cm from the floor) or on the wall (more than 5 cm from the floor) .

1st case : If the drain is positioned on the floor and on the wall (up to 5 cm from the floor), you can purchase any type of machine since all the machines produced are designed for gravity water drainage.

2nd case : If the drain is positioned on the wall (more than 5 cm from the floor), you must purchase the drain pump in addition to the standard machine. You can do this at the same time as purchasing the machine (in this case it will be installed directly and at no cost), or you can also do it at a later time (after purchasing the main machine). This is possible because all machines are designed for the installation of the loading pump.

The Drain Pump Kit - 32 W can be found among the Accessories in the product sheet or by searching for the corresponding code in the search bar (RF_03347 ).
