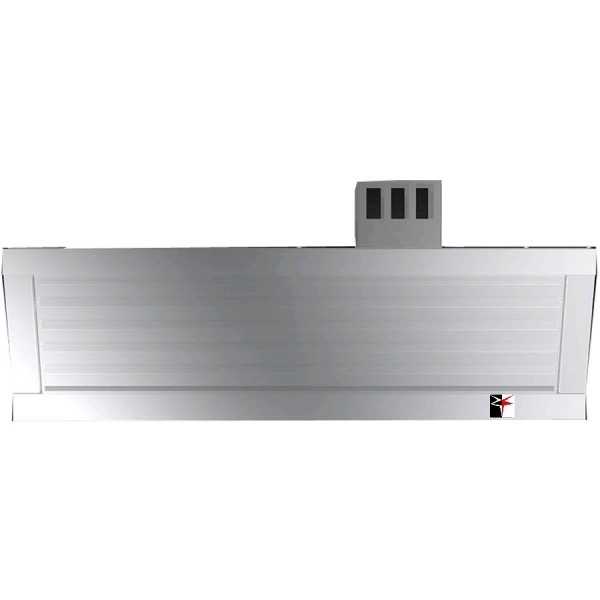

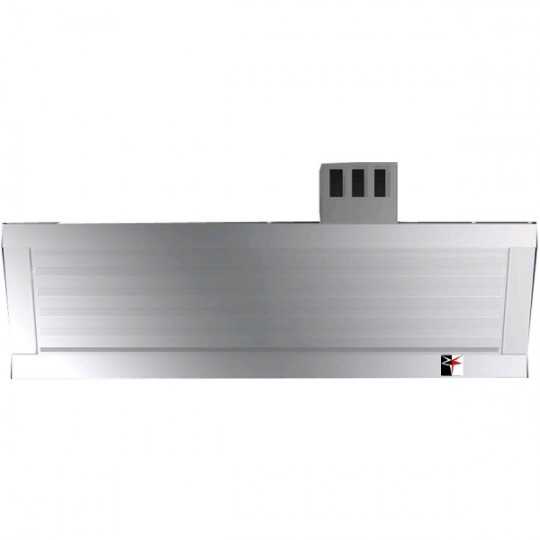

Condensing exhaust hood for 4-tray ovens
€809.00
Tax included
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Its operation is completely automatic, ensuring ease of use. Energy efficiency and attention to the environment, without sacrificing maximum suction power.
DIMENSIONAL CHARACTERISTICS
Hood dimensions: L.78.4 x D.90.7 x H.35.6 cm
Oven weight: 42 kg
ELECTRICAL CHARACTERISTICS
Electrical power: 0.6 kW
Voltage: AC 220/230 V
No. of motors: 1 monodirectional
Engine rpm: 1400 / 2000
FUNCTIONAL CHARACTERISTICS
Power supply: Electric
Control panel: From the oven
Suction / condensing chamber: AISI 304 steel
Water loading/draining: ¾” threaded connection and Ø 30 mm pipe on the back
Smoke inlet: Ø 30 mm pipe on the back
Hood dimensions: L.78.4 x D.90.7 x H.35.6 cm
Oven weight: 42 kg
ELECTRICAL CHARACTERISTICS
Electrical power: 0.6 kW
Voltage: AC 220/230 V
No. of motors: 1 monodirectional
Engine rpm: 1400 / 2000
FUNCTIONAL CHARACTERISTICS
Power supply: Electric
Control panel: From the oven
Suction / condensing chamber: AISI 304 steel
Water loading/draining: ¾” threaded connection and Ø 30 mm pipe on the back
Smoke inlet: Ø 30 mm pipe on the back
Minimum flow rate: 400 m3/h
Maximum flow rate: 600 m3/h
STANDARD EQUIPMENT
Cable with Schuko plug: Single phase [3G 1.5] - L=145 cm
Filter: no. 1st labyrinth
Connection pipe to the water mains
Chimney conveyor for Ø 12 cm pipe
Maximum flow rate: 600 m3/h
STANDARD EQUIPMENT
Cable with Schuko plug: Single phase [3G 1.5] - L=145 cm
Filter: no. 1st labyrinth
Connection pipe to the water mains
Chimney conveyor for Ø 12 cm pipe
