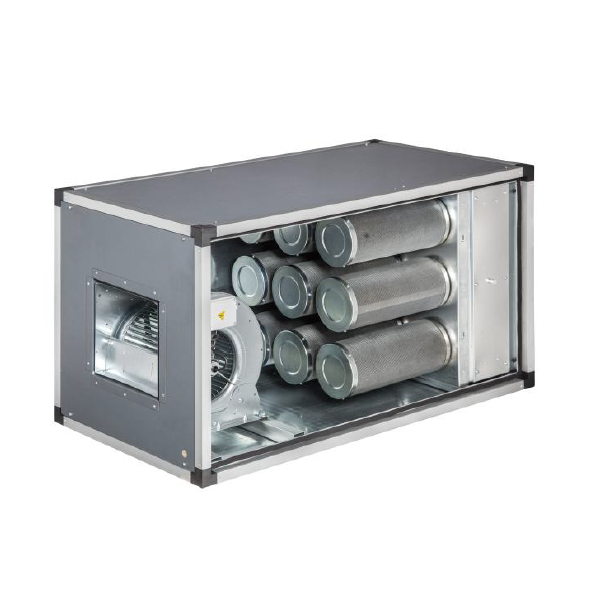

Air filtration and deodorization unit, flow rates from 1400 to 3200 m³/h

Characteristics:
- Aluminum tubular structure
- Double paneling in AISI 304 stainless steel, removable and complete with gasket
- Inspection of transmission side for maintenance
- Internal insulation and soundproofing in expanded polyurethane
- 4.8 cm thick pleated synthetic filters with 85% gravimetric efficiency (G3) - EN 779 class
- 4.8 cm thick metal mesh filters in AISI 304
- E207 type activated carbon filters

Limitations of use:
Max. temperature fluid transported: +60°
Max. humidity: 80% RH
Assembly: internal

DATASHEET

ECF 14 - Maximum flow rate 1400 m³/h

Dimensions: L.130 x D.70 x H.45 cm
RPM: 1400
Power: 0.42 kW
Voltage: 230/1/50Hz
Current: 3.6A
Maximum flow rate: 1400 m³/h
Hst: 100 Pa
Number of filters: 5
Sound pressure: 53 dB(A)*

ECF 25 - Maximum flow rate 2500 m³/h

Dimensions: L.130 x D.70 x H.70 cm
RPM: 1400
Power: 0.42 kW
Voltage: 230/1/50Hz
Current: 3.8A
Maximum flow rate: 2500 m³/h
Hst: 150 Pa
Number of filters: 9

ECF 35 - Maximum flow rate 3200 m³/h

Dimensions: L.130 x D.70 x H.70 cm
RPM: 1400
Power: 0.55 kW
Voltage: 230/1/50Hz
Current: 4.5A
Maximum flow rate: 3200 m³/h
Hst: 200 Pa
Number of filters: 9
