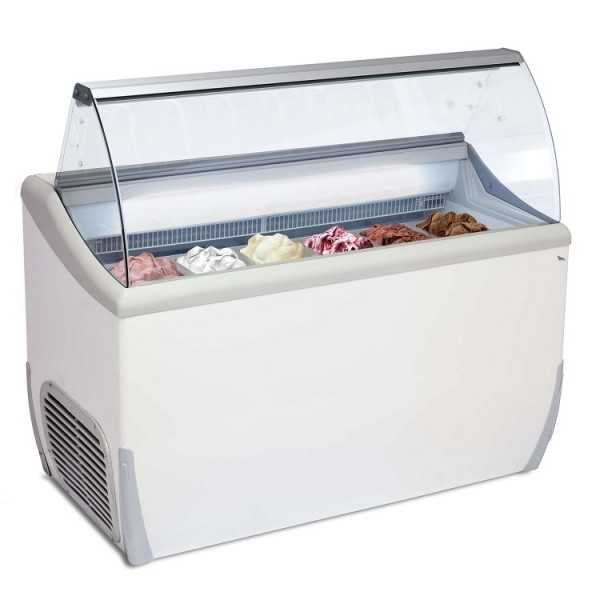

J-EXTRA ice cream counter with storage

Display case for whipped ice cream that can be ordered with 7 or 9 flavours , equipped with a reserve .
Possibility of housing two levels of 5-litre trays 12 cm high in the display compartment ( standard equipment )
Finned pack static evaporator (with defrosting resistance) and foamed coil in the walls. Upper structure with low-emissivity curved glass and flap. Electronic thermostat-thermometer with automatic defrosting. Internal light. 4 pivoting wheels. Self-closing reserve door. Reserve compartment with self-closing door.
Trays not supplied.

DATASHEET

7 FLAVOUR SHOWCASE

Dimensions : L.134.1 x D.72.3 x H.125.3 cm
Display compartment capacity (5 L trays) : 7 + 7
Reserve compartment capacity (5 L trays) : 12
Net volume : 264 litres
Temperature : -20° / -15° C
Refrigerant gas : R290
Climate class : 4 (30° C - 55% RH) L1
Power : 470W
Consumption : 9.7 kWh/24 h
Weight : 98 kg

9 FLAVOUR DISPLAY

Dimensions : L.165.6 x D.72.3 x H.125.3 cm
Display compartment capacity (5 L trays) : 9 + 9
Reserve compartment capacity (5 L trays) : 16
Net volume : 357 litres
Temperature : -20° / -15° C
Refrigerant gas : R290
Climate class : 4 (30° C - 55% RH) L1
Power : 500W
Consumption : 10 kWh/24 h
Weight : 110 kg
