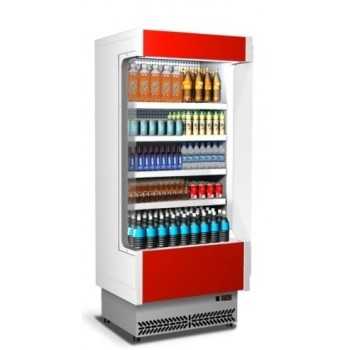

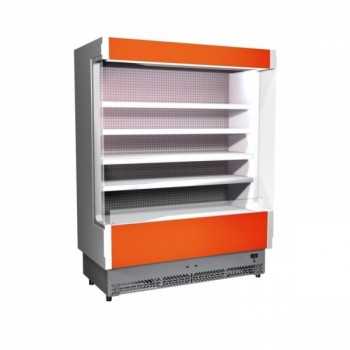

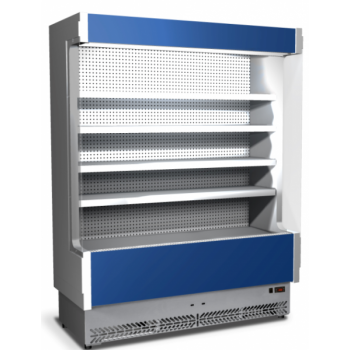

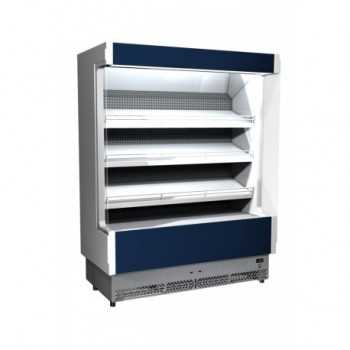

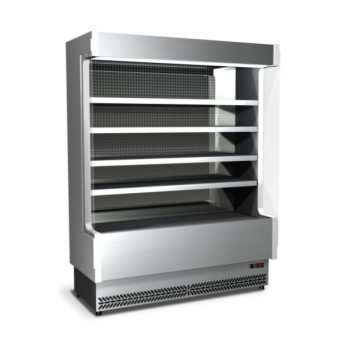

Deli and beverage multideck display fridge VULCANO, depth 60 cm
€1,499.00
Tax included

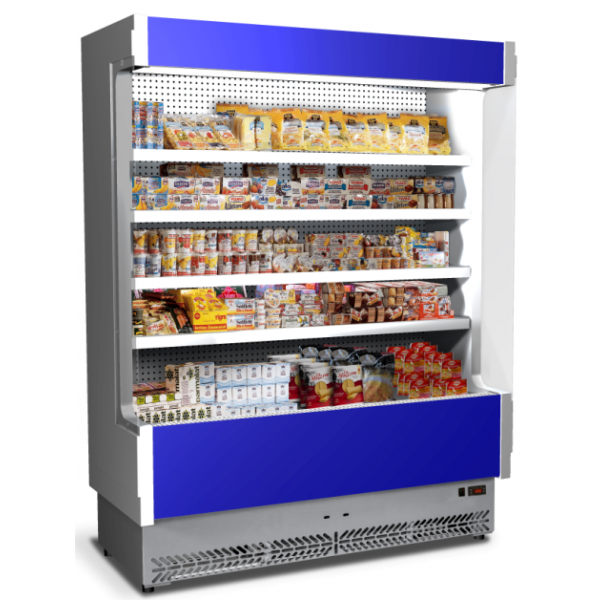

Vulcano model refrigerated wall display with a depth of 60 cm. Designed for displaying pre-packaged fresh foods that need to be stored at appropriate temperatures such as cured meats, dairy products and drinks. Designed for markets, butchers and delicatessens. Different versions available with different lengths depending on needs.
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
Accessori da avere assolutamente
Accessories
|

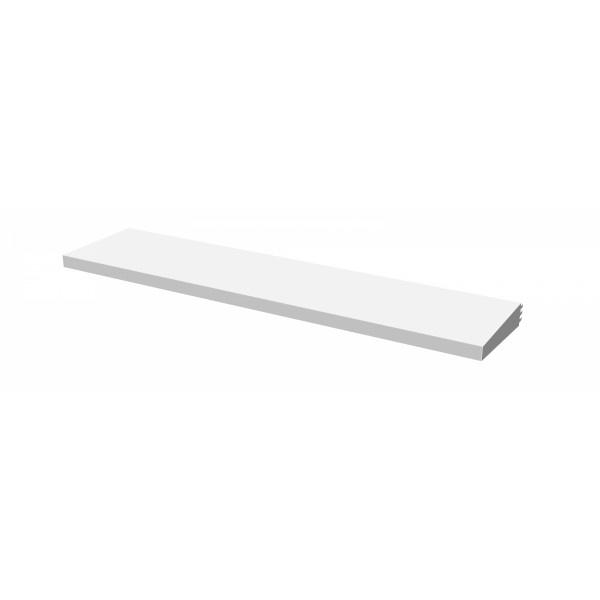

RIPIANI SUPPLEMENTARI IN LAMIERA VERNICIATA BIANCA VULCANO 60 €45.00 |
|
|

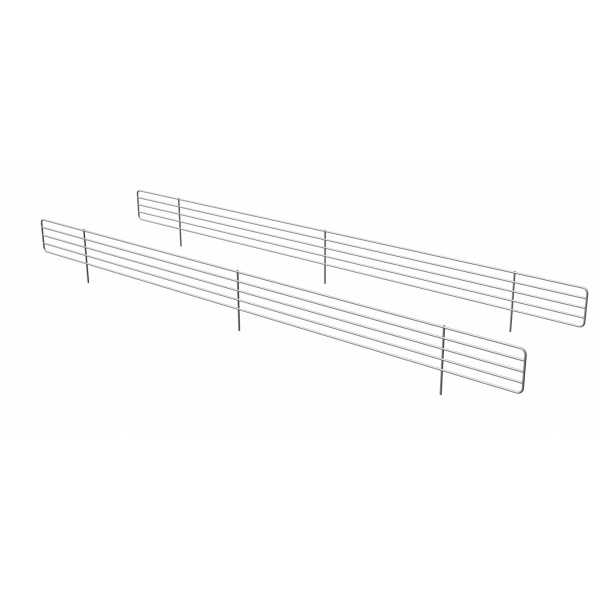

GRIGLIA FERMA-PRODOTTI PLASTIFICATA BIANCA PER VULCANO VERNICIATO (H 80 mm) €25.00 |
|

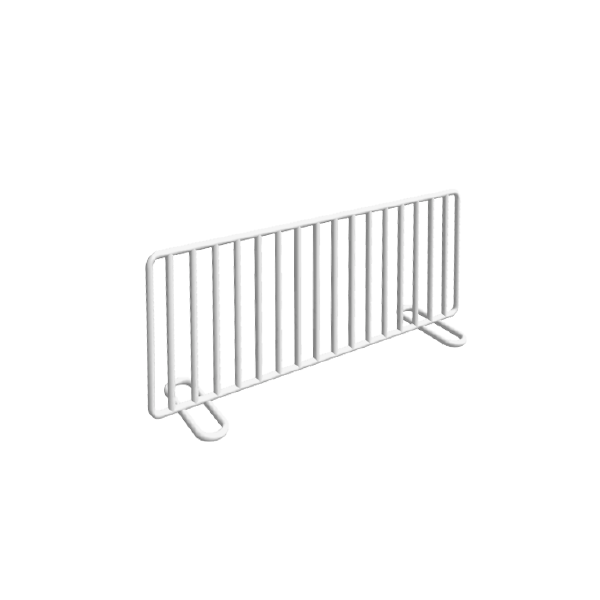

White plasticized shelf divider for Vulcano 60. |
Divisorio per ripiano plastificato bianco V60 €34.99 |
|
White plastic-coated tub divider for Vulcano wall display, 60 cm deep. Dimensions: L.38 x H.15 cm. |
Divisorio per vasca plastificato bianco V60 €44.99 |
|

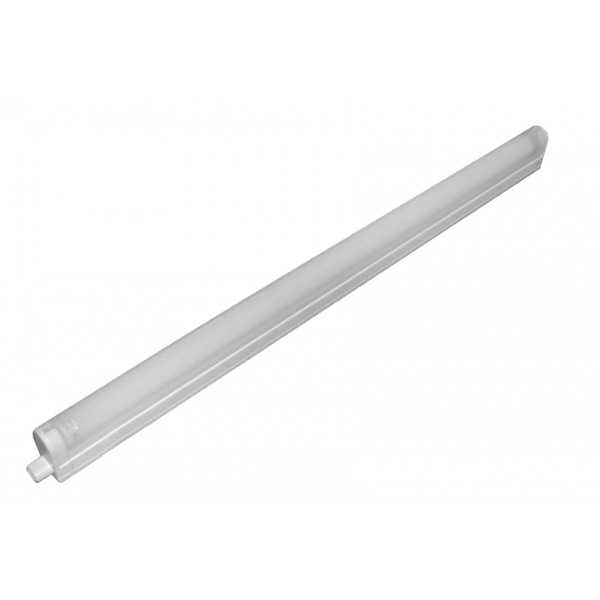

White LED shelf lighting. |
ILLUMINAZIONE BIANCA A NEON PER RIPIANO €89.00 |
|

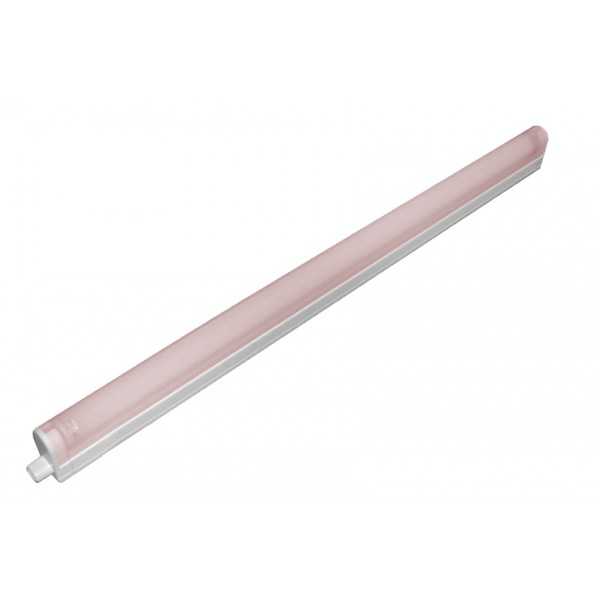

Pink LED shelf lighting. |
ILLUMINAZIONE ROSATA A NEON \'\'NATURAL\'\' PER RIPIANO €132.00 |
|
|

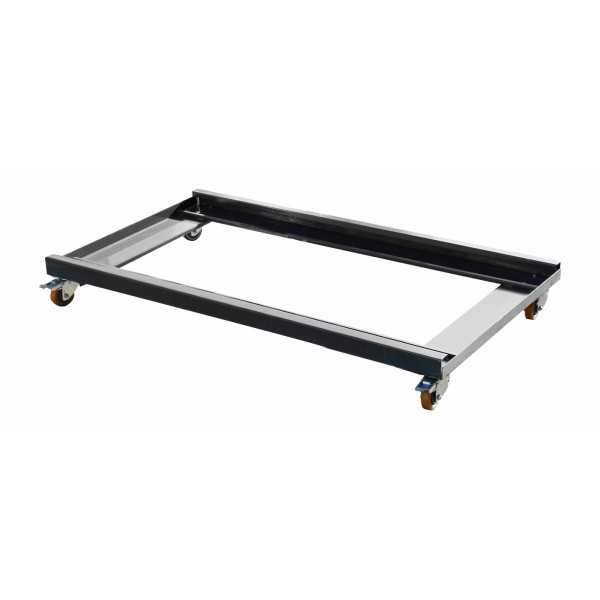

KIT RUOTE (2 con freno e 2 senza freno) VULCANO 60 €229.00 |
|
|

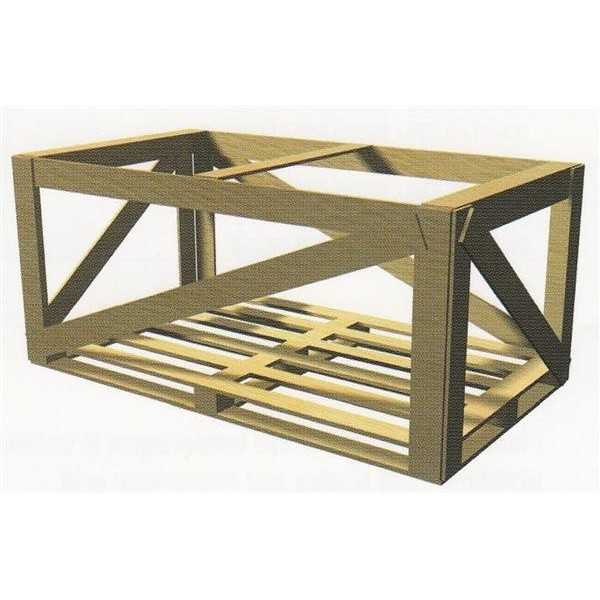

GABBIA LEGNO VULCANO 60 GABBIAV60 €59.00 |
|
|

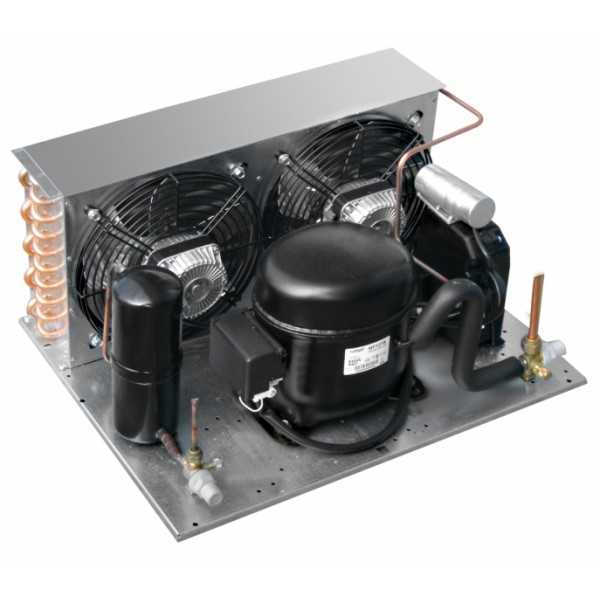

UNITà€ REFRIGERANTE REMOTA ERMETICA PER VULCANO PROFONDITA\' 60 CM €549.00 |
VERTICAL REFRIGERATED PLUG-IN DISPLAY, COMPACT, SUITABLE FOR DISPLAYING AND STORAGE OF FRESH PRE-PACKAGED PRODUCTS
Ecological, reliable, hygienic, completely customizable. Suitable for all sales surfacesDEPTH 60 cm
Conceived with particular attention aimed at ease of installation and optimization of the cleaning system , guaranteed by easy access to the internal parts. The products on display are always kept at an ideal temperature , thanks to the flow of refrigerated air and a well-sized refrigeration system . It is a product with low energy consumption and low environmental impact : the tub is made without the use of CFCs . All phases, from design to production, have been taken care of in detail: technology and design made in Italy .
CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• “Made in Italy” technology, design and production
• Easy installation
• Optimization of the cleaning system
• Low energy consumption
• Low environmental impact
• Bathtub made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request
STANDARD EQUIPMENT :
• Thermoformed and insulated sides (4 cm thick each) with tempered glass side
• Electronic control panel
• Defrost at stop
• Upper lighting with neon lamp
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder, without lighting, without product holding grids
• R452A valve in both the version with group and without group
AVAILABLE VERSIONS :
• With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With connection to remote compressor: on request
• Meat version (C): on request
• Stainless steel version: on request
AVAILABLE COLORS :
INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE.
DATASHEET
VOLCANO 60
Dimensions : L.68 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 0.93 m2
Temperature : +3/+5 °C
Total Power Absorption : 1467 W (Ventilated display with built-in group) - 44 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 18 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 660 W
Gross Weight : 100 kg
VOLCANO 80
Dimensions : L.88 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 1.25 m2
Temperature : +3/+5 °C
Total Power Absorption : 1485 W (Ventilated display with built-in group) - 55 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 880 W
Gross Weight : 120 kg
VOLCANO 100
Dimensions : L.108 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 1.57 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1100 W
Gross Weight : 140 kg
VOLCANO 125
Dimensions : L.133 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 1.95 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1375 W
Gross Weight : 170 kg
VOLCANO 140
Dimensions : L.148 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.19 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 58 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1540 W
Gross Weight : 200 kg
VOLCANO 150
Dimensions : L.158 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.35 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 58 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1650 W
Gross Weight : 225 kg
VOLCANO 187
Dimensions : L.195.5 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.94 m2
Temperature : +3/+5 °C
Total Power Absorption : 2660 W (Ventilated display with built-in group) - 129 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 58 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1980 W
Gross Weight : 255 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• “Made in Italy” technology, design and production
• Easy installation
• Optimization of the cleaning system
• Low energy consumption
• Low environmental impact
• Bathtub made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request
STANDARD EQUIPMENT :
• Thermoformed and insulated sides (4 cm thick each) with tempered glass side
• Electronic control panel
• Defrost at stop
• Upper lighting with neon lamp
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder, without lighting, without product holding grids
• R452A valve in both the version with group and without group
AVAILABLE VERSIONS :
• With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With connection to remote compressor: on request
• Meat version (C): on request
• Stainless steel version: on request
AVAILABLE COLORS :
INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE.
DATASHEET
VOLCANO 60
Dimensions : L.68 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 0.93 m2
Temperature : +3/+5 °C
Total Power Absorption : 1467 W (Ventilated display with built-in group) - 44 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 18 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 660 W
Gross Weight : 100 kg
VOLCANO 80
Dimensions : L.88 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 1.25 m2
Temperature : +3/+5 °C
Total Power Absorption : 1485 W (Ventilated display with built-in group) - 55 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 880 W
Gross Weight : 120 kg
VOLCANO 100
Dimensions : L.108 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 1.57 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1100 W
Gross Weight : 140 kg
VOLCANO 125
Dimensions : L.133 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 1.95 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1375 W
Gross Weight : 170 kg
VOLCANO 140
Dimensions : L.148 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.19 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 58 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1540 W
Gross Weight : 200 kg
VOLCANO 150
Dimensions : L.158 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.35 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 58 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1650 W
Gross Weight : 225 kg
VOLCANO 187
Dimensions : L.195.5 x D.60 x H.197 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.94 m2
Temperature : +3/+5 °C
Total Power Absorption : 2660 W (Ventilated display with built-in group) - 129 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 58 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1980 W
Gross Weight : 255 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
