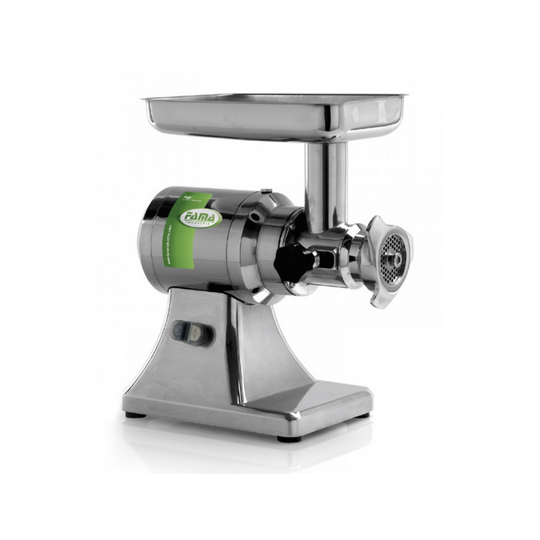

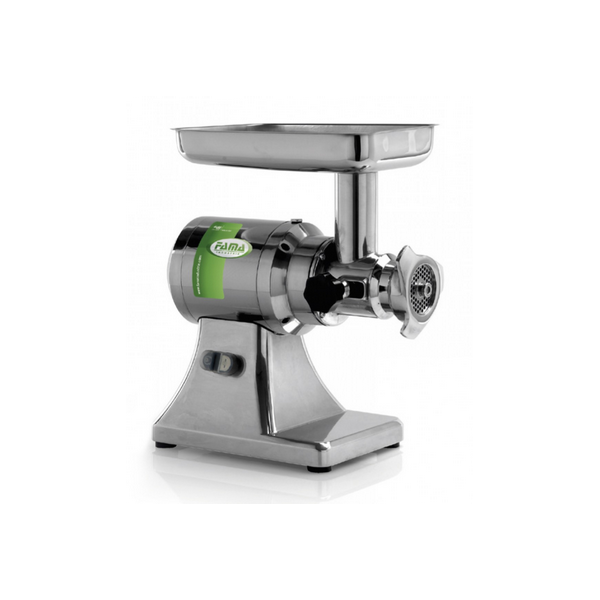

MEAT MINCER TS 22
Highly powerful professional meat grinder, suitable for canteens and communities, better in the three-phase version, even better if with a stainless steel grinding unit . Indestructible machine, appreciated everywhere for its simplicity of use and enormous work output. The base which, in addition to making the appearance of the machine much more pleasant, has the function of housing a more sophisticated electrical system and supporting the weight of the new larger and more powerful engine. The innovative modification that isolates the motor casing from the electrical apparatus is interesting. The set of tubes for stuffing meat is available.

Built in die-cast and polished aluminum alloy with an elegant stainless steel band on the motor casing. Oil bath tempered steel helical gears. Ventilated asynchronous motor with thermal protection.
Removable meat grinding unit available in:
a) Food-grade cast iron with electroless nickel plating treatment
b) Anodized aluminium
c) AISI 304 stainless steel
Self-sharpening stainless steel dies as standard. Feeding dimensions 12 x 5.2 cm. Drain dimensions 0.8/6 cm, 1.2/7 cm, 2.2/8.2 cm, 3.2/9.8 cm. Stainless steel hopper and collection plate. Pestle in ABS. 24 volt controls.

On request: Bagging set, Reverse gear.

DATA SHEET

DIMENSIONS: L.48 x D.30 x H.51 cm

POWER SUPPLY: 230/400 V - 50 Hz (Three Phase)

POWER: 1.10 Kw (1.50 Hp)

HOURLY PRODUCTION: 300 kg

MOUTH: Ø 8.2 cm

PLATE SUPPLIED: Ø 0.6 cm

SINGLE/THREE PHASE NET WEIGHT: 24.0/22.0 Kg
